Custom Pipe Flange & Fitting Specification Sheet — Material, Size, Standard & More

Product Description



    If you cannot find the exact product you need on our website, please provide us with your specific requirements using the specification form. We offer comprehensive custom manufacturing services to tailor pipe flanges and fittings according to your unique project needs, including special materials, sizes, pressure classes, and standards. Contact us today to get personalized solutions and ensure the perfect fit for your application.



Item Options/Description Customer Selection/Remarks

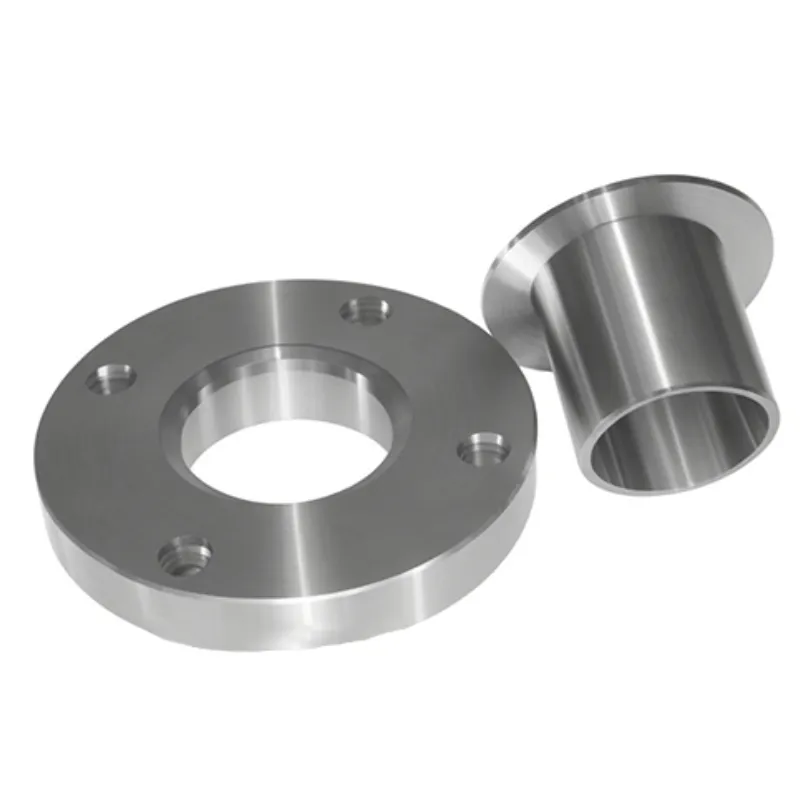

Product Type Threaded Flange / Slip-On Flange / Blind Flange  / Weld Neck Flange  / Lap Joint Flange  / Socket Weld Flange / Stub End / Others
Material Carbon Steel (ASTM A105, A350 LF2, Q235, Q345, etc.) / Stainless Steel (304, 304L, 316, 316L, 321, etc.) / Alloy Steel (ASTM A182 F11, F22, etc.) / Duplex / Super Duplex / Inconel / Others
Standard ANSI B16.5 / ASME B16.47 / DIN EN1092-1 / JIS B2220 / API 6A / ISO / Others
Size DN15 – DN3000 (1/2" – 120") or Custom Dimensions
Pressure Class ANSI Class 150 / 300 / 600 / 900 / 1500 / 2500 / PN6 / PN10 / PN16 / PN25 / PN40 / PN64 / PN100 / Others
Connection Type Threaded / Butt Weld (BW) / Socket Weld (SW) / Lap Joint / Slip-On / Weld Neck / Blind / Others
Surface Finish Mirror Polish / Matte Finish / Sand-Blasting / Galvanized / Coating / Passivation / Custom Coating
Sealing Face Type Raised Face (RF) / Flat Face (FF) / Ring Type Joint (RTJ) / Tongue & Groove (T&G) / Others
Wall Thickness SCH10 / SCH20 / SCH40 / SCH80 / SCH120 / XXS / Custom
Heat Treatment Annealed / Quenched & Tempered / Normalized / Not Required
Mechanical Properties Yield Strength / Tensile Strength / Hardness / Impact Test (Specify Requirements)
Certifications & Testing Material Test Report (MTR) / Third-party Inspection / Pressure Test / X-ray / Ultrasonic Testing (UT) / PMI
Packaging Wooden Box / Pallet / Carton / Custom Packaging
Marking & Identification OEM Logo / Heat Number / Size Marking / Custom Marking
Delivery Time Standard Lead Time / Expedited Delivery (Specify)
Order Quantity Single Piece / Bulk (Please specify quantity)
Remarks Any Special Requirements
